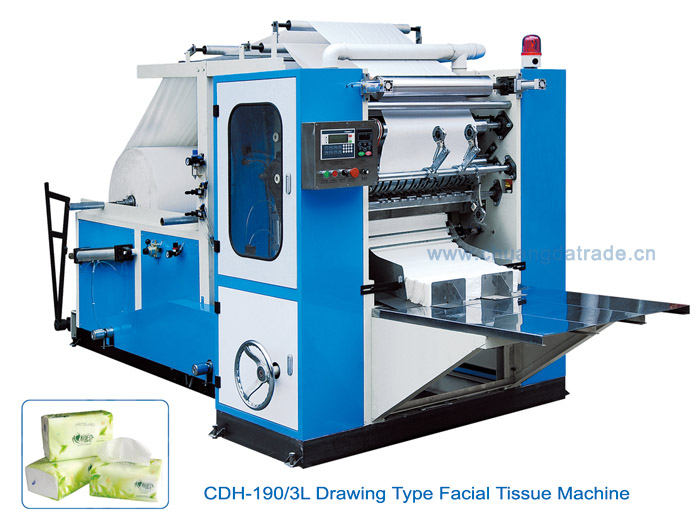

1.Function and Feature
Automatic counting, the output fold by fold.
Adopt helix cutter, and Vacuum adsorption folding.
Decoiled paer with timing controlled, can adjusted well the tension of base paper.
Frequency conversion timing, PLC controlled.
The width of tissue can adjusted, it can large demand by the customer.
2.Main Technical Parameter
Production speed: (60-100m/min)x3
Unfolded Production size: 190x(130-210)mm( LxW) ( width can be changeable)
Folded production size : 95x(130-210)mm( LxW) ( width can be changeable)
Electric power: 3KW
Vacuum: 7.5KW (380V, 50HZ)
Weight: 2000-2500kg
Machine size:4100x1500x2100mm( LxWxH)
3.According to the request of customers
Equip embossing unit.(clear embossing design)
Equip two-color printing unit.(nice printing design)
